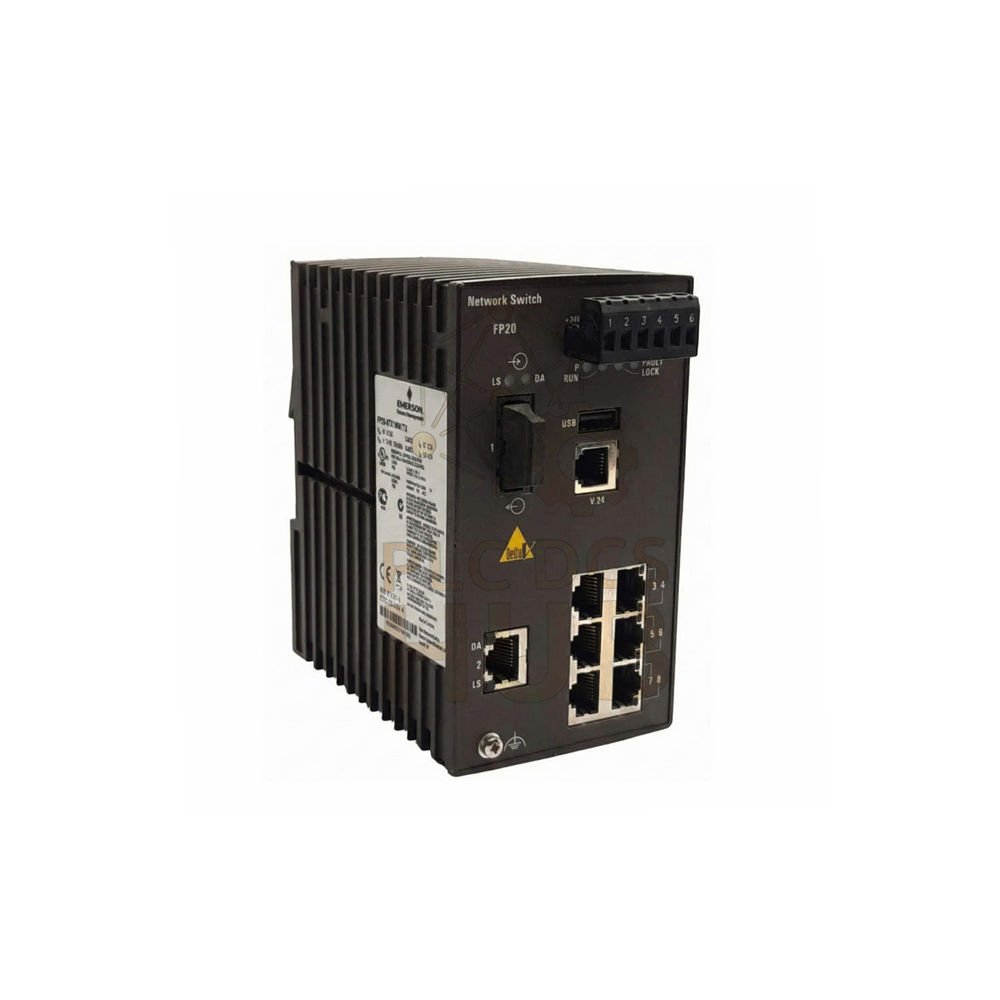

VE6041 Managed Switch for DeltaV | Fiber Uplinks | Auto Security Lockdown

Description Product Introduction The VE6041 DeltaV Smart Switch is a managed industrial switch for DeltaV systems. It has 8 ports running at 10/100 MB speed. The switch includes both fiber and copper uplinks. It mounts on a DIN rail for easy panel installation. Choose standard or extended temperature with conformal coating. DeltaV manages the switch completely. Network alerts and diagnostics go directly to DeltaV workstations. Key Features 8 ports with auto-negotiation to 100 MB Fiber and copper uplink options Fully managed by DeltaV systems Automatic network alerts to workstations Plug-and-play installation with auto security lockdown Fan-less design for industrial reliability Extended temperature and conformal coated versions available Emerson fully supports this switch Technical Specifications Brand: PLCDCS HUB / Emerson DeltaV Model: VE6041 Type: 8-port managed industrial Ethernet switch Port speed: 10/100 MB, auto-negotiating Uplink ports: Fiber and copper combinations Local ports: Connect to one device like a controller Uplink use: Any port can work as uplink or local port Operating voltage: 24 V DC (range 18 to 30 V) Dimensions (W x H x D): 74 x 131 x 111 mm (2.9 x 5.16 x 4.37 inches) Mounting: DIN rail Weight: 410 g (14.48 oz) for all models Protection class: IP20 Temperature range (standard): 0 to 60°C typical Temperature range (extended): -40 to 70°C with conformal coating Humidity: 5% to 95% non-condensing MTBF:
